When a piece of equipment goes down, the goal is to get it back up and running as fast as possible. However, ordering a replacement sleeve bushing based on “guesswork” or a rough tape measure reading often leads to costly delays.
To ensure you get the right fit from Ball Bushing Warehouse, you need to capture three critical dimensions. Here is how to measure like a pro.
The Tools You’ll Need
- Digital Calipers: (Essential for accuracy to $0.001 inches or $0.01 mm).
- A Micrometer (Optional): If you need extreme precision for high-tolerance press fits.

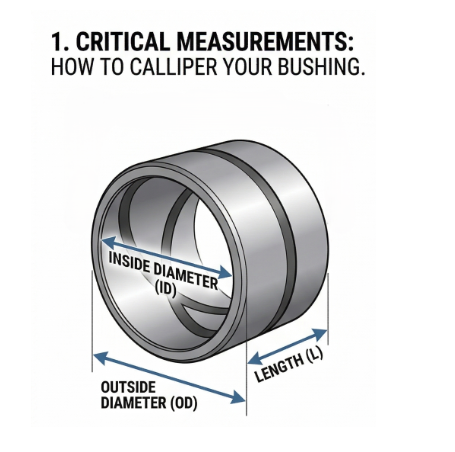

1. Identify the Three Main Dimensions
Every sleeve bushing is defined by its ID, OD, and Length. For example, a HSB 405530 has a 40mm ID, 55mm OD, and 30mm length.
A. Inside Diameter (ID)
The ID is the most critical measurement because it determines the fit on your shaft.
- How to measure: Place the internal jaws of your calipers inside the bushing.
- Pro Tip: Measure in two or three different spots. If the bushing is worn, it may be “out-of-round” (oval-shaped). Use the largest measurement to determine the original size.
B. Outside Diameter (OD)
The OD determines how the bushing fits into the housing or bore.
- How to measure: Use the external jaws of your calipers around the center of the bushing body.
- Warning: If the bushing was press-fitted, the OD might be slightly deformed. Check the housing bore itself if the bushing seems damaged.
C. Length (L)
This is the total width of the bushing from end to end.
2. Determining Inch vs. Metric
This is where most mistakes happen. A 25mm ID and a 1-inch (25.4mm) ID look nearly identical to the naked eye, but they are not interchangeable.
- Check the Equipment: If your machinery was manufactured in Europe or Asia, it is almost certainly Metric. If it is older American-made equipment, it is likely Inch.
- The Decimal Clue: When you measure, if your caliper reads 0.984″, it’s likely a 25mm metric part. If it reads 1.000″, it’s a 1-inch part.
3. Don’t Forget the Material
While you have the part out, check for:

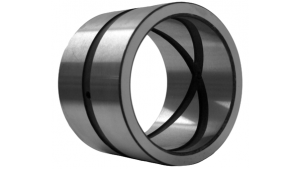

- Oil Grooves: Does the inside have a “figure-8” or circular groove for grease?
- Material: Is it yellow/gold (Bronze), grey/silver (Steel), or does it have a dark plastic lining (PTFE/Self-Lubricating)?
Summary Checklist for Ordering
Before you head to the ebushing.com Sleeve Bushing Catalog, have these numbers ready:
- Inside Diameter (ID): ________
- Outside Diameter (OD): ________
- Length (L): ________
Need Help? > If your bushing is too damaged to measure, or you can’t find a match for your dimensions, call us at 860-693-1797 . We specialize in helping you find the right bushing, at the right price!
